New » Kawasaki » Ninja® ZX™-10R
Model Quick Search

$11,799.00

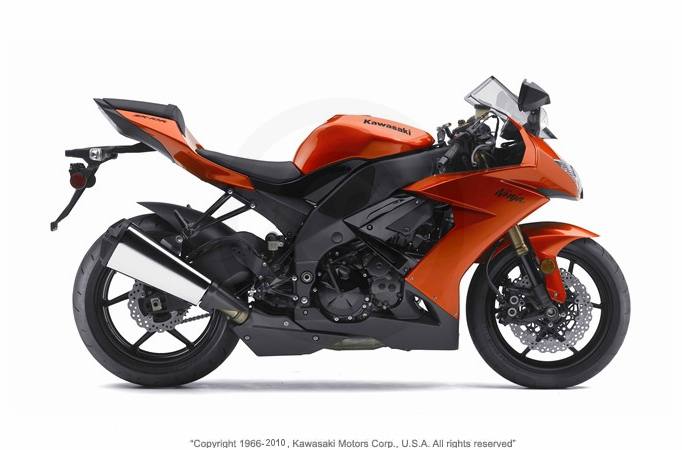

2009 Kawasaki Ninja® ZX™-10R
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Candy Burnt Orange / Flat Super Black
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Four-Cylinder, DOHC 998cc Engine
    • Very compact, narrow and lightweight design
    • One-piece upper crankcase and cylinder casting saves weight and offers increased rigidity
    • Oil is routed through channels milled into the cases on various parts of the engine, eliminating oil lines and saving weight
    • Stacked triangular layout of crank axis, input shaft and output shaft reduces engine length and lowers the center of gravity
    • Lightweight crankshaft maintains the same inertial moment as heavier design but saves about two pounds
    • Low friction oil pump reduction ratio
    • Water pump uses the same type impeller as the ZX-14 with pump rpm optimized for less friction
    • Lightweight Denso radiator with tightly packed cores
    • Specially designed internal fins on the liquid-cooled, aluminum oil cooler for highefficiency heat dissipation
    Cylinder head
    • Intake ports, exhaust ports and combustion chambers designed for optimum flow efficiency and top-end power
    • Exhaust ports are narrower at the midpoint and larger at the opening to promote higher exhaust velocity
    • 24.5mm diameter exhaust valves
    • Lift profiles of the cam lobes are designed to deliver more power at high rpm and make it easier to tune the engine for racing
    Fuel Injection
    • Secondary fuel injectors improve top-end power output and power characteristics
    • Oval cross-sectioned throttle bodies allow more precise throttle control and response
    • Compact flat-type fuel pump takes up less fuel tank space
    Air intake
    • Ram air intake duct shaped for lower intake noise and higher intake efficiency
    • Larger airbox offers accessibility and ease of maintenance
    KIMS Ignition
    • Kawasaki Ignition Management System (KIMS) helps curtail sudden spikes in engine speed, enhancing the rider’s control of power delivery
    • Designed not to interfere with the rider’s inputs, the complex ECU program remains passive, unless the change in engine speed exceeds the predicted response for the given parameters, the KIMS will not engage
    • Monitors engine speed, throttle position, vehicle speed, gear position, FI input data (feedback from intake air temperature, intake air pressure, engine temperature and O2 sensors), and rate of RPM change, then adjusts ignition timing to help regulate power delivery
    • Only possible to adjust the parameters with an accessory racing (circuit-use only) kit installed
    Exhaust system
    • Features a pre-chamber under the engine to reduce exhaust noise, and minimize silencer volume
    • Palladium catalyzer helps the ZX-10R to meet strict Euro-III exhaust emissions standards
    • Single orthogonal, titanium silencer, along with the pre-chamber, lowers the bike’s center of gravity and improves exhaust efficiency
    Six-Speed Transmission
    • Gear ratios suit the power characteristics for ideal power delivery in the low and high-rpm ranges
    • Final reduction ratio of 17/41 intensifies the acceleration
    • Features an adjustable back-torque limiting clutch
    Chassis
    • Unique twin-spar frame features an optimized stiffness balance through a mixture of materials, shapes and thicknesses, which alleviate critical stress concentrations
    • Ribbing on the interior of the pivot plate where it joins the frame’s upper cross member slightly slows down the frame feedback for a more accurate feel
    • Swingarm pivot located to aid with the front-rear weight balance
    • Lightweight, two-piece, aluminum die-cast sub-frame is mounted to the frame’s upper cross member, so rear suspension feedback is transmitted more directly to the rider
    • Narrow sub-frame layout contributes to the compact and slim rear of the bike
    Swingarm
    • Pressed beam swingarm delivers a level of feel and feedback unobtainable with a cast swingarm
    • Swingarm features a top-mounted brace that contributes to the superb high-speed stability of the chassis
    Suspension
    • DLC (Diamond Like Carbon) fork tube coating on the fully adjustable 43mm inverted fork improves fork action with less friction, smoother action and better road holding
    • Bottom mounted springs completely submerged in oil for reduced frothing and improved damping performance, fork action and road-following ability
    • Fully adjustable shock features dual (lowand high-speed) compression damping, providing the fine-tuning needed for racing
    Race-quality steering damper
    • Adjustable Öhlins steering damper with relief valve and twin-tube design, developed specifically for the Ninja ZX-10R is fitted as standard equipment to ensure stable damping performance even under racing conditions
    Brakes
    • Tokico radial mount brake calipers fitted with dual pads for superb initial bite, increased control and a progressive feel
    • 5.5mm thick 310mm petal discs provide the heat dispersion needed to maintain brake feel and responsiveness during extended periods of heavy use
    • 220mm rear petal disc is gripped by a single-piston caliper
    Wheels
    • Squeeze-cast wheels offer more precise dimensions with less wall thickness and weight yet are stiffer than the gravity-cast units
    Ergonomics
    • Rear frame, tank and seat offer high levels of contact with the bike and provide the rider very accurate feedback regarding chassis performance and road surface
    • Flared fuel tank top makes it easier for riders to rest the inside of their arm on the tank when leaning into a turn
    • Narrow in the front and shorter, front to back, for a slimmer riding position, the seat offers a shorter reach to the pavement and excellent feedback from the chassis
    • A special rib on the end of throttle tube, under the rubber, improves grip and feel
    Aerodynamic Bodywork
    • Top of the front cowl has a slight step at the front to reduce wind blast on the rider’s shoulders and generate a laminar flow around the rider’s helmet for less turbulence at higher speeds
    • Front fender aids cooling efficiency by directing air toward the radiator
    • Recess on the top of the fuel tank accommodates the helmet’s chin, so it’s easier to tuck in behind the windscreen
    • High mounting position of mirrors, with integrated turn signals, provides excellent rearward visibility and helps to minimize damage if the bike falls over
    • Flush-surface of the tail’s underside reduces turbulence at the rear of the bike and ensures laminar airflow around the seat
    • Larger rear inner fender keeps the bike cleaner and allows the mud flap to be smaller and less obtrusive, further improving aerodynamic qualities around the rear of the machine
    • The mirrors, license plate holder and rear turn signals are easily removable for track day prep
    • LED tail light makes the bike more visible to drivers and provides the final styling flourish to the evocative Ninja design
    Advanced Electronic Instrumentation
    • Instrument cluster uses UV-blocking glass, so the LED displays are brighter and easier to read
    • Multifunction odometer, tripmeter, clock and lap timer/stopwatch
    Specifications
    • Engine Type: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
    • Displacement: 998cc
    • Bore x Stroke: 76.0 x 55.0 mm
    • Maximum Torque: 83.2 lb-ft @ 8,700 rpm
    • Compression Ratio: 12.9:1
    • Fuel Injection: DFI with 43mm Keihin throttle bodies with oval sub-throttles, two injectors per cylinder
    • Ignition: TCBI with digital advance and Kawasaki Ignition Management System (KIMS)
    • Transmission: Six-speed
    • Final Drive: Chain
    • Rake/Trail: 25.5deg / 4.3 in.
    • Front Tire Size: 120/70 ZR17
    • Rear Tire Size: 190/55 ZR17
    • Wheelbase: 55.7 in.
    • Front Suspension / wheel travel: 43mm inverted fork with DLC coating, adjustable rebound and compression damping, spring preload adjustability and top-out springs / 4.7 in.
    • Rear Suspension / wheel travel: Uni-Trak® with top-out spring, stepless, dual-range (high/low-speed) compression damping, stepless rebound damping, fully adjustable spring preload / 4.9 in.
    • Front Brake Type: Dual semi-floating 310 mm petal discs with dual four-piston radial-mount calipers
    • Rear Brake Type: Single 220mm petal disc with single-piston aluminum caliper
    • Fuel Tank Capacity: 4.5 gal.
    • Seat Height: 32.7 in.
    • Curb Weight: 458.6 lbs.
    • Overall length: 83.1 in.
    • Overall width: 28.0 in.
    • Overall height: 44.7 in.
    • Color: Ebony, Candy Burnt Orange / Flat Super Black
    • Warranty: 12 Months
    • Good Times™ Protection Plan: 12, 24, 36, 48 months

    Specifications

    Engine
    Engine Type Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
    Displacement 998 cc
    Bore and Stroke 76.0 x 55.0 mm
    Cooling Liquid-cooled
    Compression Ratio 12.9:1
    Fuel System DFI with 43 mm Keihin throttle bodies with oval sub-throttles, two injectors per cylinder
    Ignition TCBI with digital advance and Kawasaki Ignition Management System (KIMS)
    Chassis
    Front Suspension 43 mm inverted fork with DLC coating, adjustable rebound and compression damping, spring preload adjustability and top-out springs; Travel: 4.7 in.
    Front Brakes Dual semi-floating 310 mm petal discs with dual four-piston radial-mount calipers
    Front Tire 120/70 ZR17
    Rear Suspension Uni-Trak® with top-out spring, stepless, dual-range (high/low-speed) compression damping, stepless rebound damping, fully adjustable spring preload; Travel: 4.9 in.
    Rear Brakes Single 220 mm petal disc with single-piston aluminum caliper
    Rear Tire 190/55 ZR17
    Dimensions
    Dry Weight 458.6 lbs
    Fuel Capacity 4.5 gal.
    Wheelbase 55.7 in.
    Seat Height 32.7 in.
    Trail 4.3 in.
    Rake 25.5°
    Transmission
    Transmission Six-speed
    Final Drive Chain
    General
    Colors Ebony, Candy Burnt Orange / Flat Super Black
    Warranty Standard: 12 months; Optional: Good Times™ Protection Plan: 12, 24, 36 or 48 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model Ninja® ZX™-10R
    Style Super Sport
    MSRP* $11,799.00
    Chassis
    Front Suspension 43 mm inverted fork with DLC coating, adjustable rebound and compression damping, spring preload adjustability and top-out springs; Travel: 4.7 in.
    Front Brakes Dual semi-floating 310 mm petal discs with dual four-piston radial-mount calipers
    Front Tire 120/70 ZR17
    Rear Suspension Uni-Trak® with top-out spring, stepless, dual-range (high/low-speed) compression damping, stepless rebound damping, fully adjustable spring preload; Travel: 4.9 in.
    Rear Brakes Single 220 mm petal disc with single-piston aluminum caliper
    Rear Tire 190/55 ZR17
    Dimensions
    Dry Weight 458.6 lbs
    Fuel Capacity 4.5 gal.
    Wheelbase 55.7 in.
    MPG
    Seat Height 32.7 in.
    Trail 4.3 in.
    Rake 25.5°
    Engine
    Engine Type Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
    Displacement 998 cc
    Bore and Stroke 76.0 x 55.0 mm
    Cooling Liquid-cooled
    Compression Ratio 12.9:1
    Fuel System DFI with 43 mm Keihin throttle bodies with oval sub-throttles, two injectors per cylinder
    Ignition TCBI with digital advance and Kawasaki Ignition Management System (KIMS)
    General
    Speedometer
    Tachometer
    Odometer
    Colors Ebony, Candy Burnt Orange / Flat Super Black
    Warranty Standard: 12 months; Optional: Good Times™ Protection Plan: 12, 24, 36 or 48 months
    Transmission
    Transmission Six-speed
    Final Drive Chain
